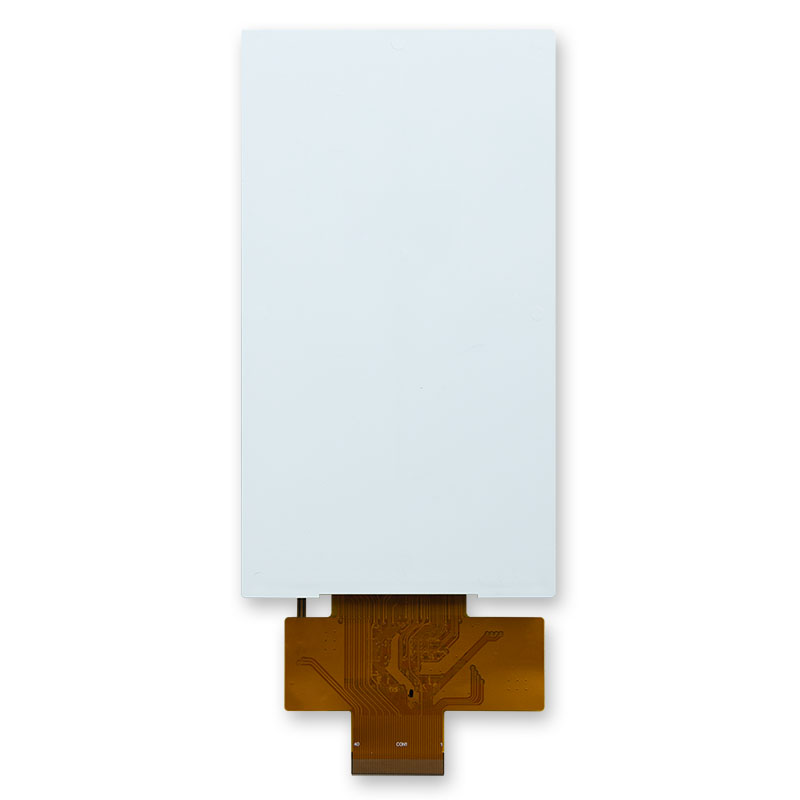

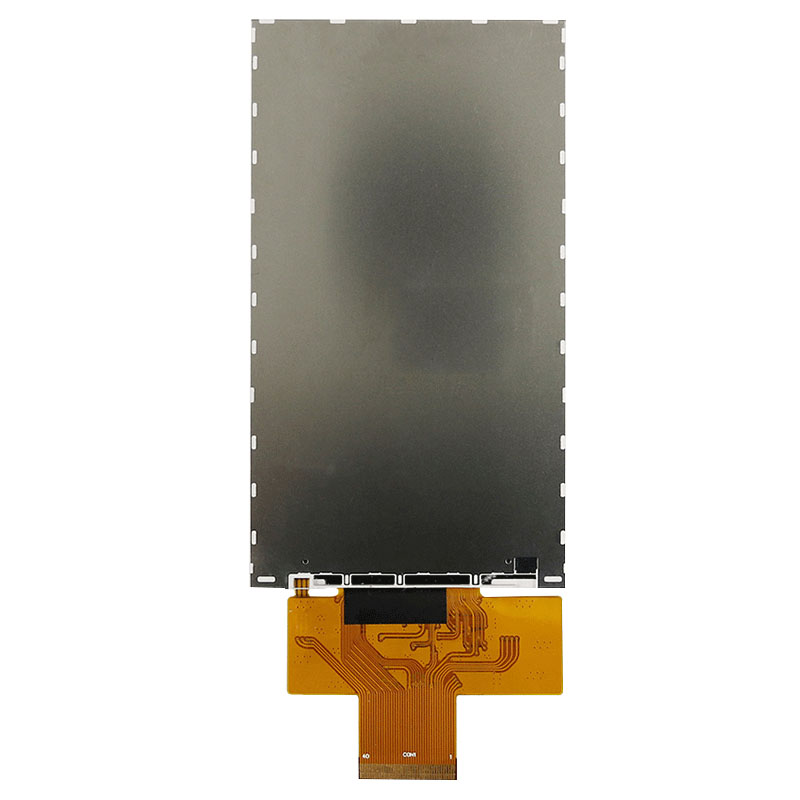

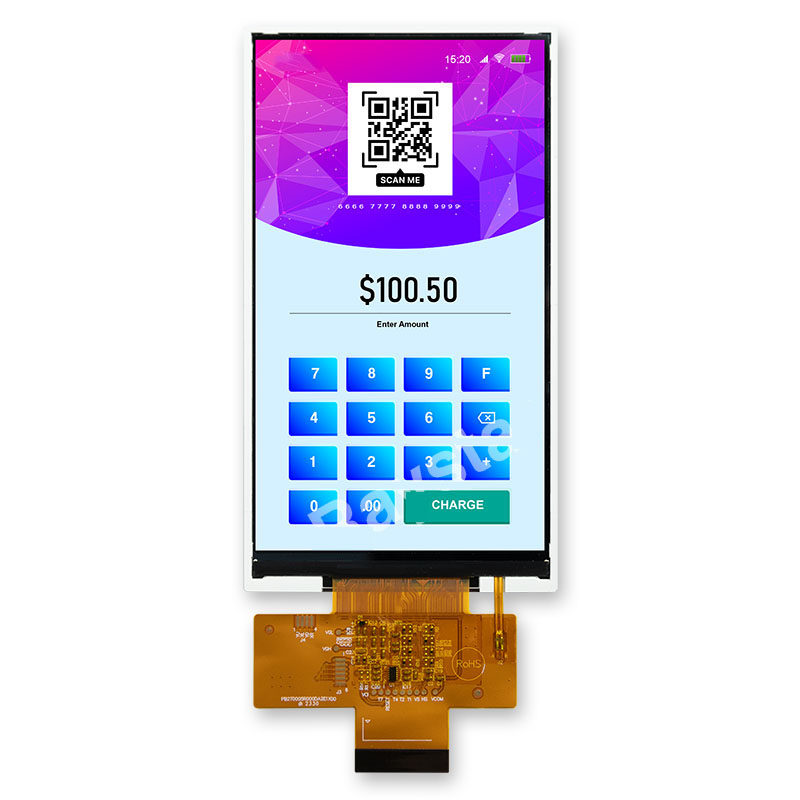

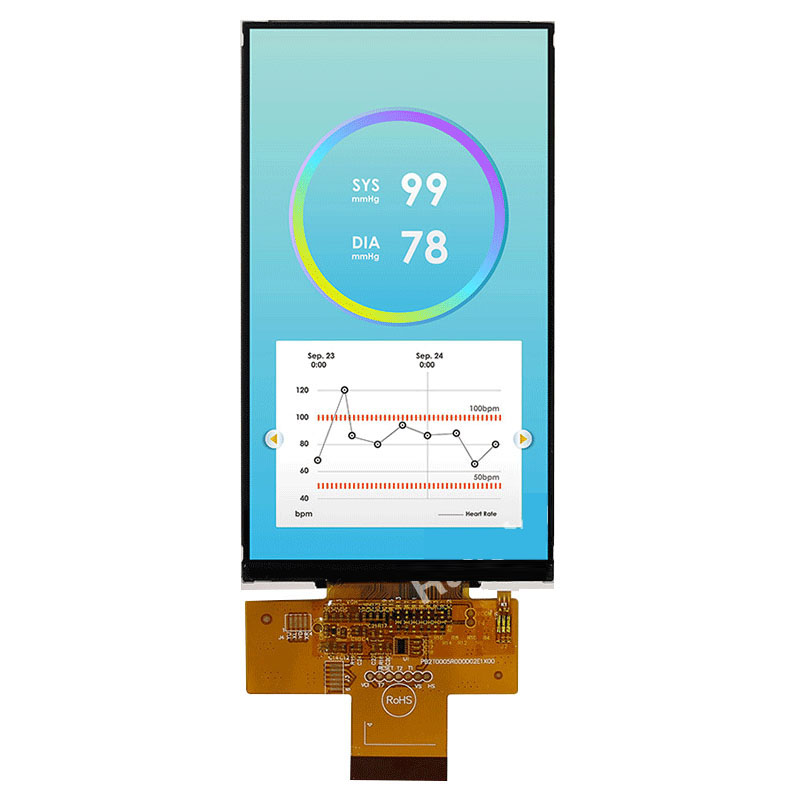

5" IPS, MIPI TFT LCD Panel
Exemplar No. RF3500D-AYW-MNN
Certiorem facere potes emere Mipi Tft Lcd Ostentare ex officina nostra.
RF3500D-AYW-MNN summus modulus effectus est cum 5.0-inch TFT-LCD ostentus usus technologiae amorphosi siliconis TFT pro commutatione fabrica. Dimensiones eius sunt 66.10(W) 120.4(H) 1.85(D) et area ostentationis efficax 62.1(W) 110.4(H) mm. Ostentatio solutionem 720x1280 imaginum habet, rationem aspectum 16:9, et angulum extensionis 80/80/80/80 spectans, experientiam visualem praestans. TFT IC agitans ostentationem ILI9881C est.
Hoc productum est RoHS-obsequium, ostentatio interfaciei utitur 4-canali MIPI, et tergum album commune est LED. Eius ratio contraria est 800:1 et claritas typica est 300 cd/m2. Copia extensionis 2.5V ad 3.6V, temperatura operativa est -20℃ ad +70℃, et ad -30℃ ad +80℃ repositio temperatura pervenire potest, ut eam in variis ambitibus stabiliter operari possit.
| ITEM | DIMENSIONE |
| TFT Series | Standard TFT LCD, IPS TFT LCD |
| Magnitudo (Diagonal) | 5 |
| Dot Matrix / Resolution | 720 3(RGB) 1280 |
| Module Dimension | 66.10(W) 120.4(H) 1.85(D) |
| Active Area | 62.1(W) 110.4(H) |
| Dot / Pixel Pitch | 0.08925(W) 0.08625(H) |
| LCD Type | TFT, Communiter Niger, Transmissive |
| Visum Directio | 80/80/80/80 (IPS) |
| Aspect ratio | 16:9 |
| Backlight Type | DUXERIT, Northmanni Alba |
| Imperium Board | No |
| TFT IC Coegi | ILI9881C vel aequivalens |
| Interface | 4-Lanc MIPI DSI |
| Tange Panel | Sine tangere Panel |
| Superficies | Glare |
| splendor | 300 |
| Adscendens Hole | No |
| Temperature operating | -20~+70 |
| Repono Temperature | -30~+80 |
Operatio Typical Conditions
| ITEM | SYMBOL | VALUES | AS | ||
| MIN | TYP | MAX | |||
| Analog in circuitu potentia copia | VCI | 2.5 | 3.3 | 3.6 | V |
| Potentia copia ad rationem circuli | IOVCC | 1.65 | 1.8 | 3.6 | V |
| Current pro Coegi | IDD | - | 44 | ma | |
Backlight Coegi Conditions
| PARAMETER | SYMBOL | MIN | TYP | MAX | AS |
| DUXERIT current | ILED | - | 40 | - | ma |
| DUXERIT voltage | VLED+ | 19.6 | - | 23.8 | V |
| DUXERIT Vita Tempus | 30,000 | - | - | Hr |
