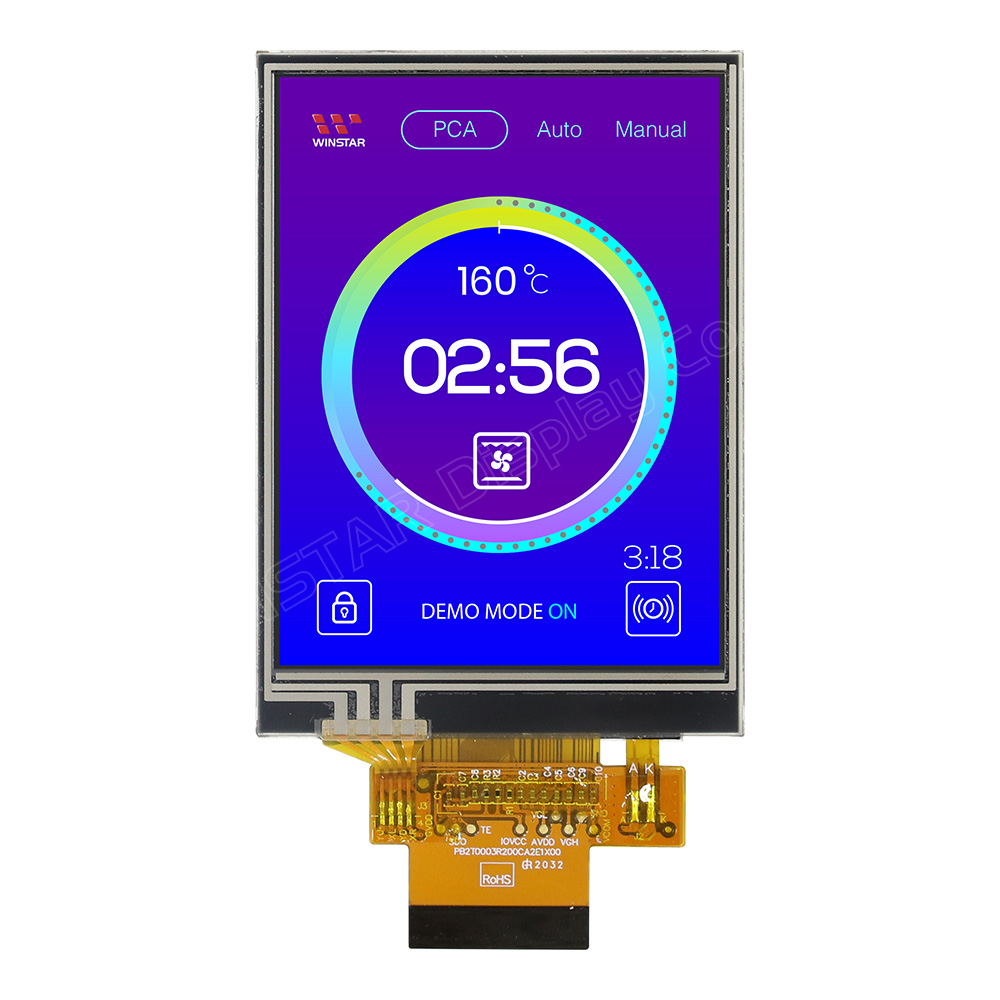

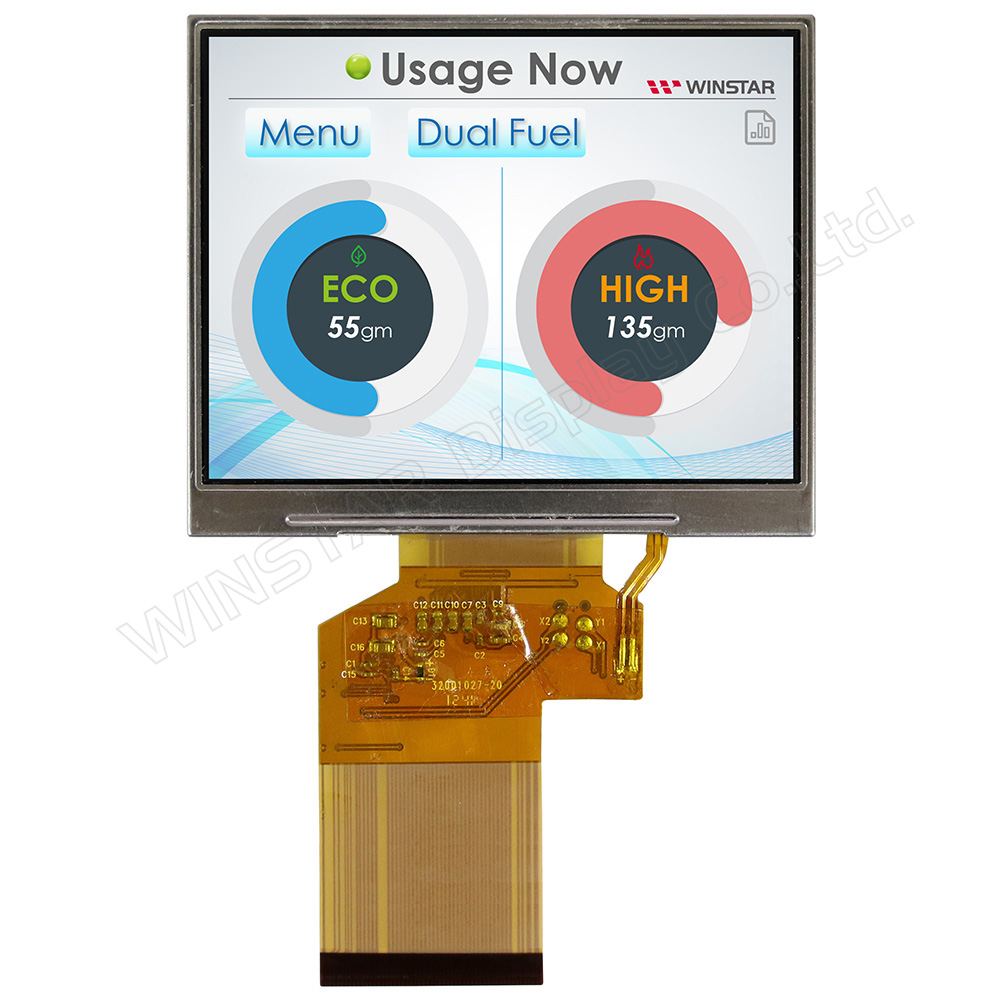

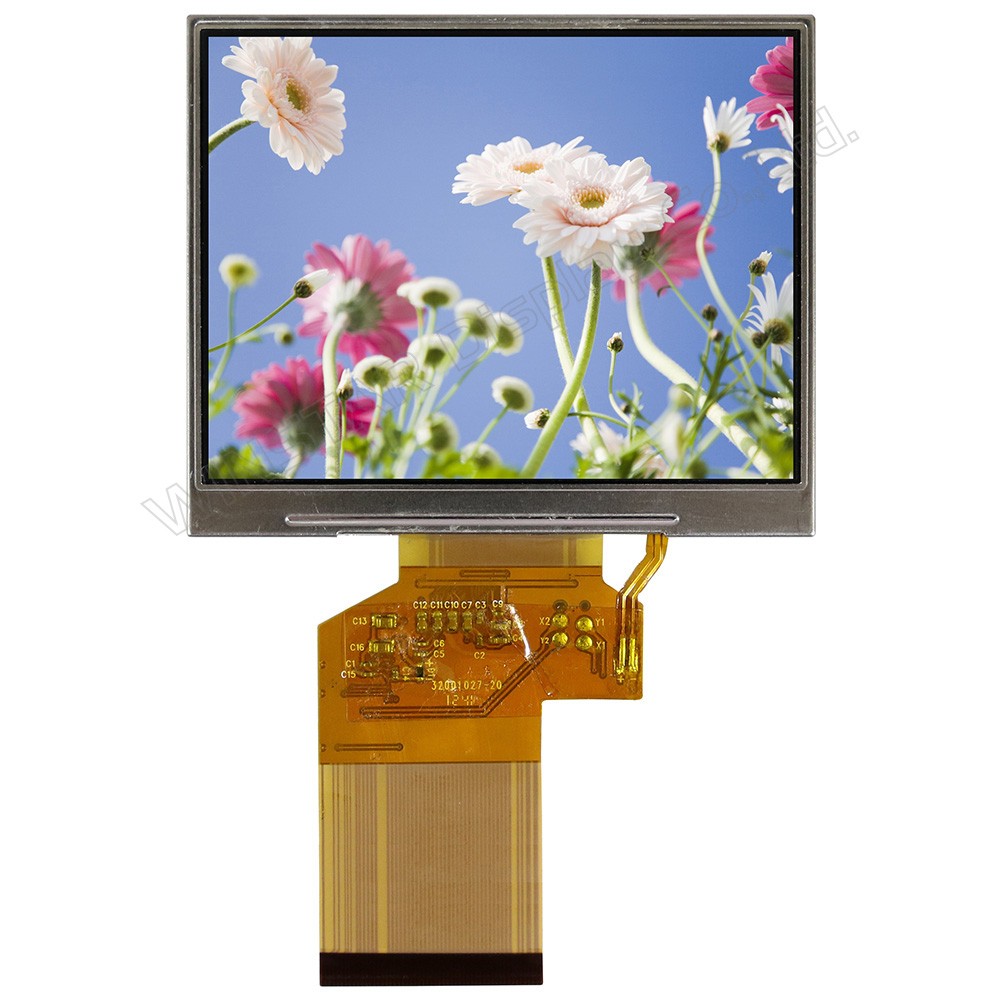

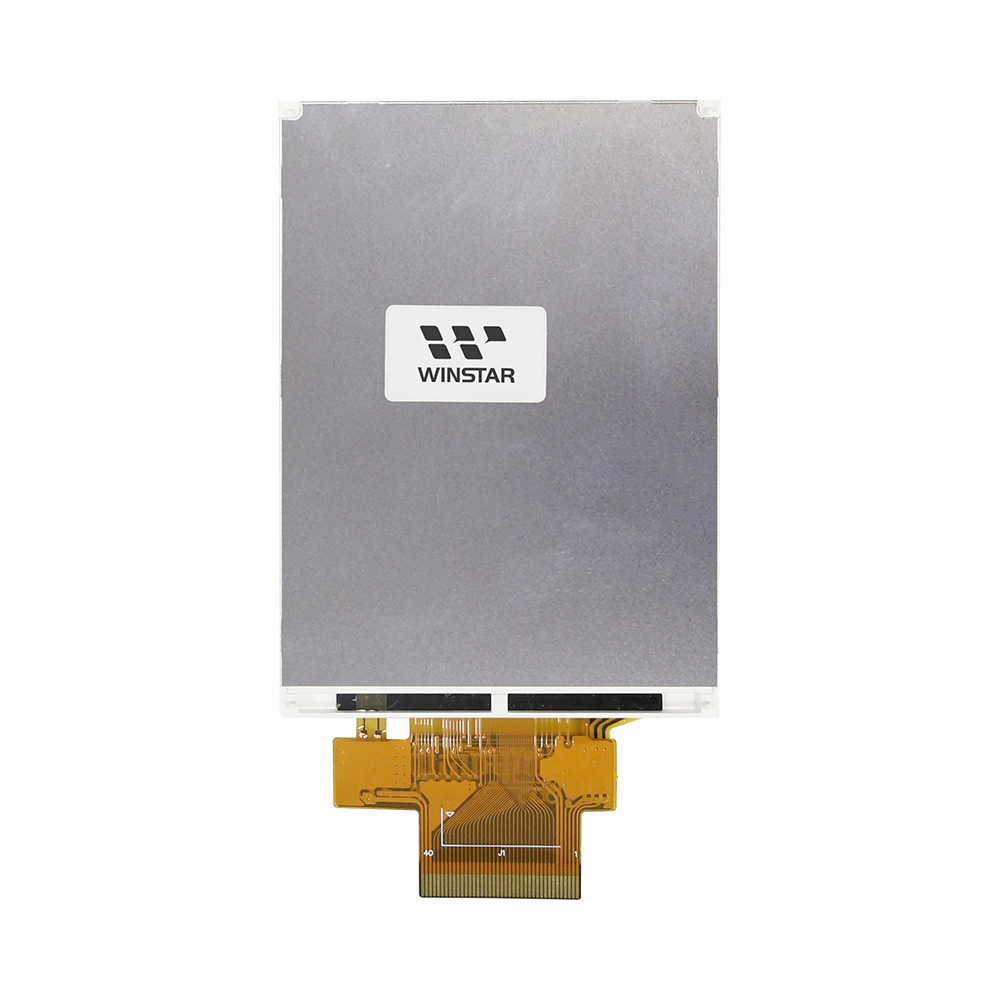

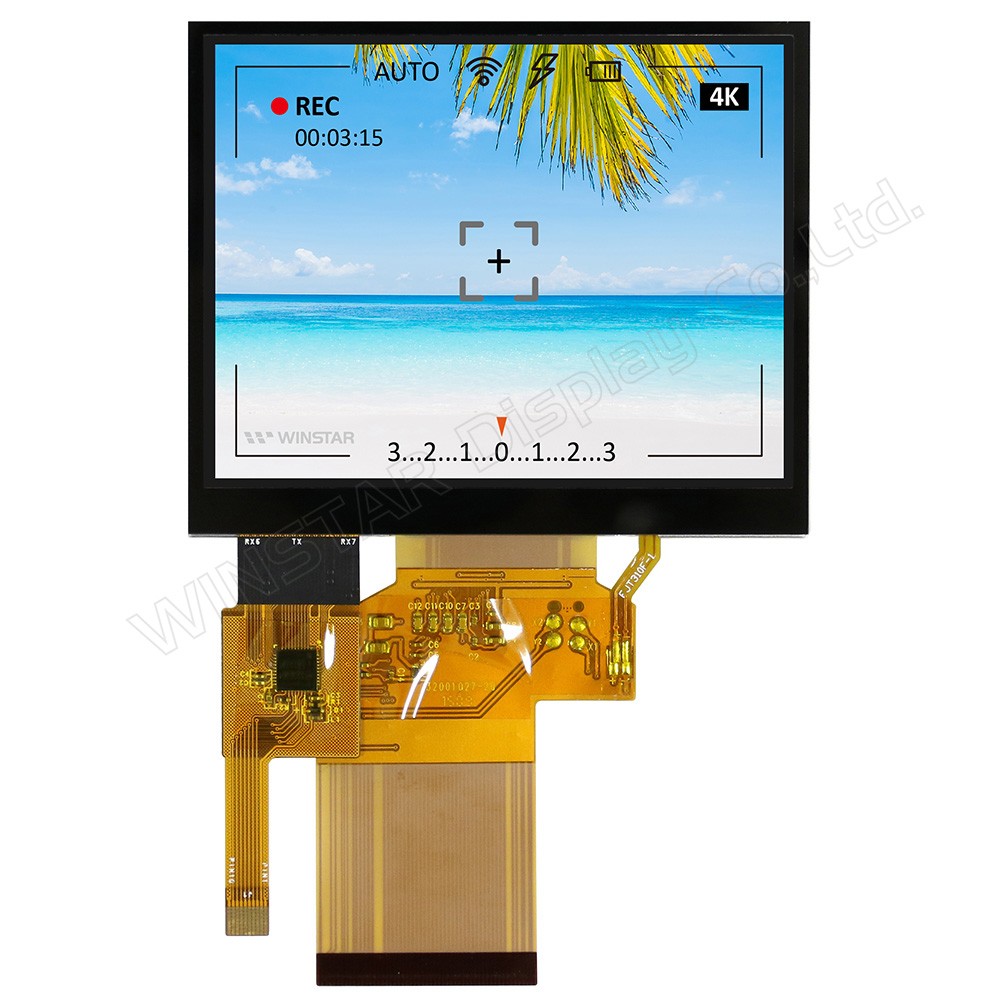

Certum esse potes emere nativus candor Tft Lcd Propono a nobis. Summus claritas TFT ostensiones instructae sunt cum potentibus DUCTUS backlights et claritatem pervenire potest usque ad 4500cd/m².
In claro lumine ambitus, sicut fenestrae tabernam vel foris in luce solis directa, TFT splendori normali ostendit saepe difficile est videre et obscura apparent. Nostra summus claritas TFT ostendit uti lucida backlights et speciales polarizers ut contenta clare his conditionibus ostendant.
WF40ESWAA6DNG0 alta claritas est 4 inch quadrata IPS TFT LCD ostensionis moduli cum capativo tactus velamento projecto (PCAP) et resolutio 480 x 480 elementa. Modulus interfaciem RGB 24 frenum sustinet et utitur tabula IPS tabula cum angulum latum aspectum typicum (reliquit: 80 / rectum: 80 / top: 80 / fundum: 80 gradus), ratio antithesis 800:1, claritas alta de 800 lendes, et superficies anti- gulae cum ratione aspectus 1:1.
WF40ESWAA6DNG0 quadratum TFT LCD propono moduli ST7701S exactoris IC integrant cum copia extensionis 2.5V ad 3.6V, cum valore typico 2.8V. Exemplar WF40E normaliter operari potest in ambitu de -30℃ ad +80℃, et repositio temperatura range est etiam -30℃ ad +80℃.
DUCTUS
SPECIFICATIONS
Interface
LCM ACUS Definition
| Pin | Symbolum | Munus |
| 1 | VLED- | Potentia ad DUXERIT backlight cathode |
| 2 | VLED+ | Power for LED backlight anode |
| 3 | GND | Potentia terram |
| 4 | VCC | Potentia copia |
| 5 | R0 | Data bus |
| 6 | R1 | |
| 7 | R2 | |
| 8 | R3 | |
| 9 | R4 | |
| 10 | R5 | |
| 11 | R6 | |
| 12 | R7 | |
| 13 | G0 | Data bus |
| 14 | G1 | |
| 15 | G2 | |
| 16 | G3 | |
| 17 | G4 | |
| 18 | G5 | |
| 19 | G6 | |
| 20 | G7 | |
| 21 | B0 | Data bus |
| 22 | B1 | |
| 23 | B2 | |
| 24 | B3 | |
| 25 | B4 | |
| 26 | B5 | |
| 27 | B6 | |
| 28 | B7 | |
| 29 | SCL | SCL: Vide horologium input pro SPI interface. |
| 30 | PCLK | Dat horologium signum RGB interface operandi |
| 31 | CS | - A chip select signum Minimum: chip est electus et adeunda Altus: chip non est electus nec adeunda |
| 32 | HSYNC | Recta synchronising signum RGB interface operandi |
| 33 | VSYNC | Frame synchronum signum RGB interface operandi |
| 34 | OF' | Data enable signum RGB interface operandi Humilis: accessum enabled Princeps: aditus inhibuit |
| 35 | SDA | SDA: Serial data input/output bidirectional clavum pro SPI interface. |
| 36 | RESET | - Reset externum initus est - Initializes chip cum humili input. Fac ut potestatem in reset post supplendam potestatem exsequi. |
| 37-40 | NC | Non connect |
PCAP PIN Definition
| Pin | Symbolum | Munus |
| 1 | VSS | Analog Circuitus |
| 2 | VDDT | Power Supple: +3.0V |
| 3 | SCL | I2C horologium initus |
| 4 | NC | Non connect |
| 5 | SDA | I2C data initus et output |
| 6 | NC | Non connect |
| 7 | /RST | Reset externa, humilis activa est |
| 8 | NC | Non connect |
| 9 | /INT | Externi adjiciant ad exercitum |
| 10 | VSS | Analog Circuitus |
Specificationes generales
| Item | Dimension | Unitas |
| Magnitudo | 4.0 | digitis |
| Dot Matrix | 480 3(RGB) 480 | dots |
| Modulus dimensionis | 78.8(H) 82.95 (W) 7.17 | mm |
| Active regio | 71.856(H) 70.176 (V) | mm |
| Dot picem | 0.1497(H) 0.1462(V) | mm |
| LCD genus | TFT, Communiter Niger, Transmissive | |
| Visum Directio | 80/80/80/80 | |
| Aspect ratio | 1, 1; | |
| Interface | 24-bit RGB | |
| Exactoris IC | ST7701S vel aequivalent | |
| Backlight Type | DUXERIT, Northmanni Alba | |
| PCAP IC | ST1633I vel equivalentis | |
| PCAP Interface | I2C | |
| PCAP FW Version: | V01 | |
| Tange Panel | capacitive tactus panel (PCAP) | |
| Superficies | Anti-Glare | |
Maximum Ratings
| Item | Symbolum | Min |
| Temperature operating | TOP | -30 |
| Repono Temperature | TST | -30 |
Characteres electrici
Operatio Typical Conditions
| Item | Symbolum | Values | Unitas | ||
| Min. | Typ. | Maximilianus. | |||
| Interface Supple intentione | VCC | 2.5 | 2.8 | 3.6 | V |
| Current pro Coegi (White) | IVCC | - | 27 | 40.5 | ma |
| Supple PCAP | VDDT | 2.8 | - | 3.3 | V |
| ICTP(mA) | - | 12.4 | 18.6 | ma | |
