0802 Moribus LCD Propono Y-G COB STN LCD Module

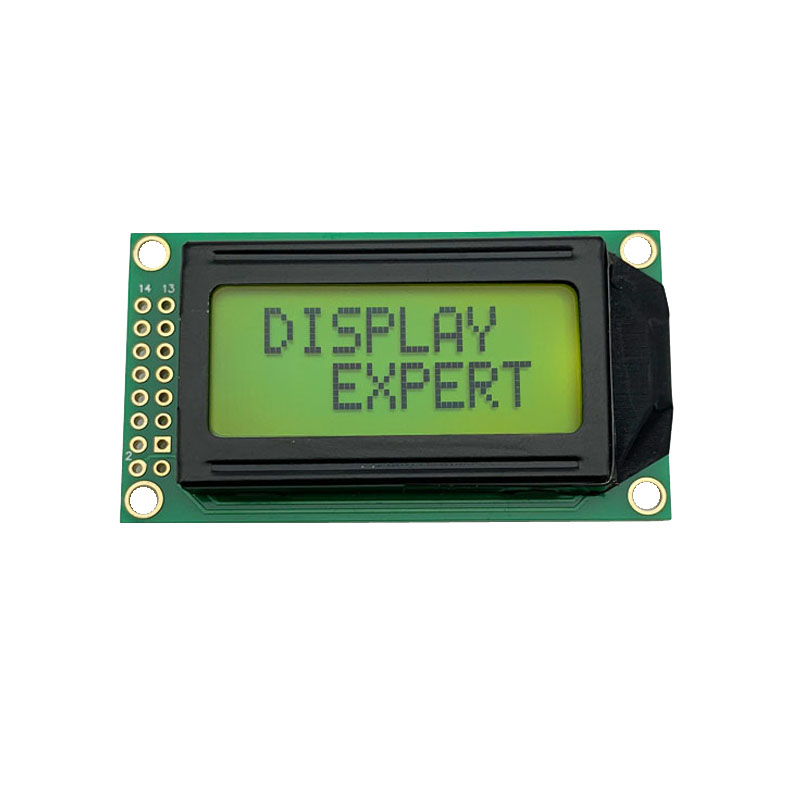

Ut opificem professionalem, volumus tibi praebere Characterem Mono LCD Propono. SC0802001-V01 est character 8 2 lineae 8×2 character LCD ostentus cum STN COB Yellow Grenn backlight. Haec ostentatio in SPLC780D Driver IC aedificata est cum 16 clavo 6 hora in angulo visendi.
Type: Character
●Modo: STN/Y-G
Product No: SC0802001-V01
●Size: -
Resolutio: 8*2
● Dimension: 28.2×32.3×2.1
●Activum Area: 27.45*11.50
Interface: 8bit MCU
●IC: SPD0301ZD
Brightness: -
Tange screen: No
View Direction: 6
Pin No: 16
Shape: Rectangulum
2002 Moribus LCD Propono STN Negative BLUE

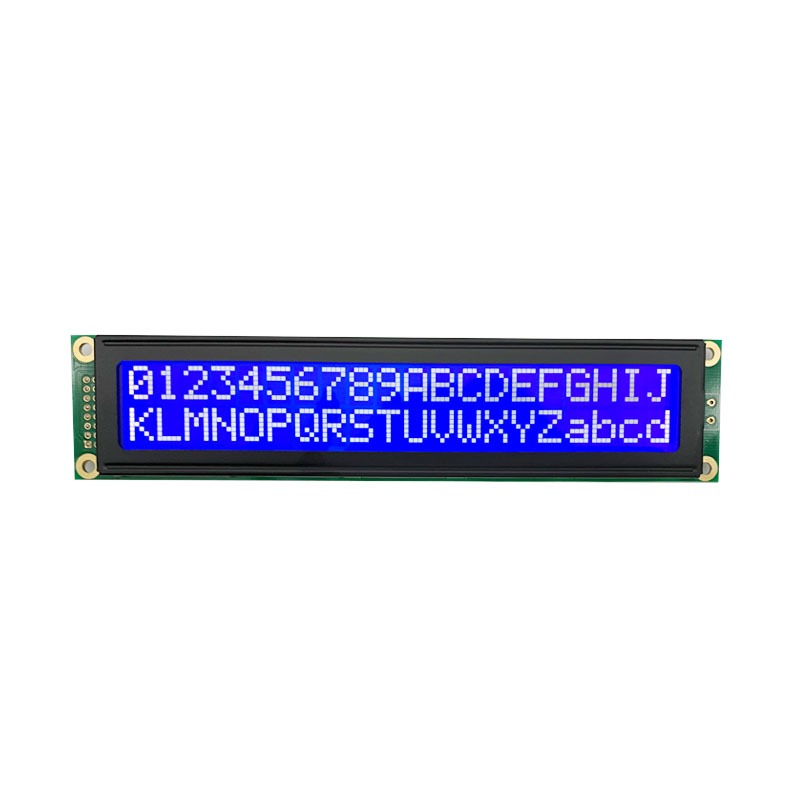

SC2002001-V01 character LCD Propono cum 20*2 resolutione, cum AIP31066 IC, 16 PIN, 6 hora View directionis constructa est.
Type: Character
Modo: STN-Blue
Product No: SC2002001-V01
●Size: -
Resolutio: 16*2
●Outline Dimension: 116*37*13.2
●Activum Area: 85* 18.6
Interface: 8bit MCU
●IC: AIP31066
Brightness: -
Tange screen: No
View Direction: 6
Pin No: 16
Shape: Rectangulum
General Specification
| Item | Vexillum Precium | Unitas |
| Display Type | 20 Characteres x 2 Lineae | Mm |
| LCD Type | STN, NEGATIVUS (RED) TRANSMISSIVE | Mm |
| Coegi Condition | LCD Module : 1/16 Officium , 1/5 Bias | Mm |
| Directio Viewing | VI O'Clock | Mm |
| Backlight Type | ALBUM | Mm |
| Interface | VIII-bit MPU interface | – |
| Exactoris IC | AIP31066 | – |
| Divisio- | 116(L) * 37(W) * Max 13.2(T) | mm |
| Area Viewing | 85(L) * 18.6(W) | mm |
| Dot magnitudine | 0.61(W) 0.63(H) | mm |
| Dot picem | 0.66(W) 0.69 (H) | mm |
| Character size | 3.25(W) 5.39(H) | mm |
| Nec. | Symbolum | Munus |
| 1 | VSS | Humus (0V) |
| 2 | VDD | Supple intentione logicae (+5.0V) |
| 3 | VO | Contra temperatio |
| 4 | RS | Data / Instructio Selecta |
| 5 | R/W | Legere / scribere Select |
| 6 | E | Admitte signum |
| 7-14 | DB0-DB7 | Data Bus |
| 15 | LED_A | LED Power Supple + (5.0V) |
| 16 | LED_K | DUXERIT Power - (0V) |
